SPECIFICATIONS

Brand Name: Elubor
Certification: None
High-concerned chemical: None
Installation Method: self-contained
Is Batteries Included: No
Is Bulbs Included: No
Item Type: Stage Lighting Effect
Luminous Flux: <60
Model Number: 532nm
Nominal Voltage: 12v
Occasion: Professional Stage & DJ
Origin: Mainland China
Power (W): 200mw
Power Source: DC
Style: DMX Stage Light
Voltage: 12V

Wavelength: 532nm+-8nm
Power:<200mW
Adjustable focus (i.e. adjusting the size of the light spot)
The power can be adjusted through an external PWM signal! PWM frequency not exceeding 18kHz, adjust duty cycle and power.
Working voltage: 12V
Light class shape: non perfectly circular,
The beam from the light outlet is about 1 millimeter, which is relatively thin.
1. The laser power module is relatively large, and eye contact is prohibited, otherwise it may cause permanent blindness, and the consequences are at your own risk!
2. Do not use in flammable and gaseous environments to avoid fire and explosion.
3. Children are prohibited from coming into contact with this laser product.

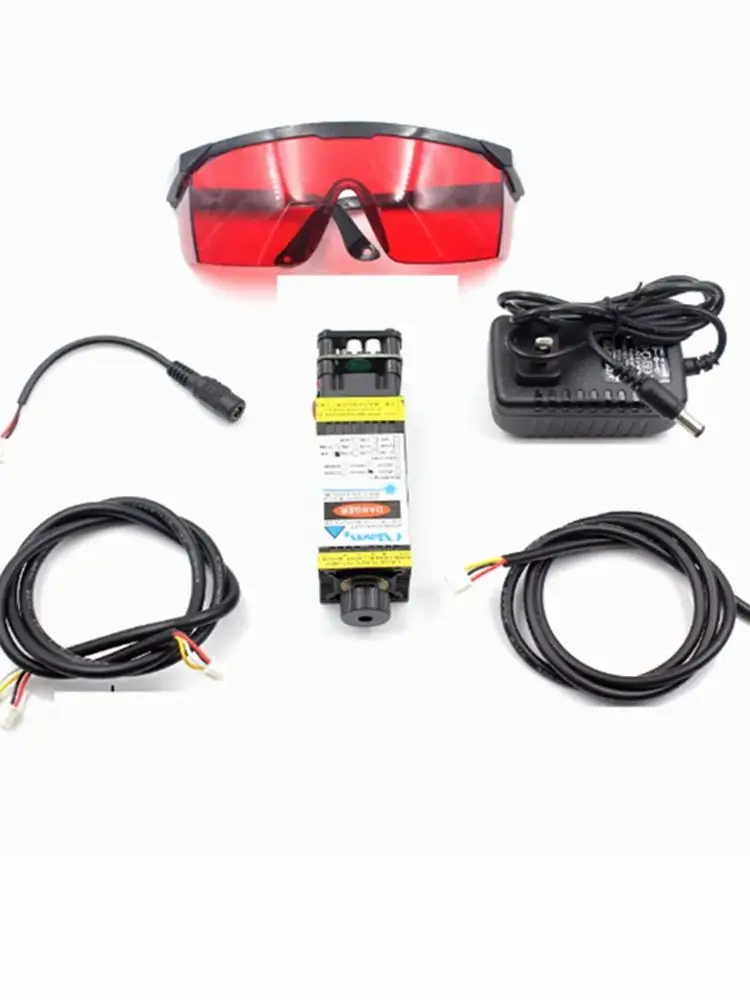

4. This laser comes with a power adapter that can be directly connected to a socket to emit light.
5. Do not open the module to prevent damage.
7. PWM: 0-5V, Frequency<18K
8. The laser interface has three pins, with the red wire connected to a 12V+power supply, the yellow wire connected to a PWM+signal, the black wire connected to a power supply GND, and the white wire connected to a signal GND. The power supply and signal are grounded together! If the signal is not connected, simply connect 12V+and GND to emit light! No need to connect the signal again, the signal is only used to control the switch or adjust the power!
