SPECIFICATIONS

Item ID: GX105666
Major Material: ABS

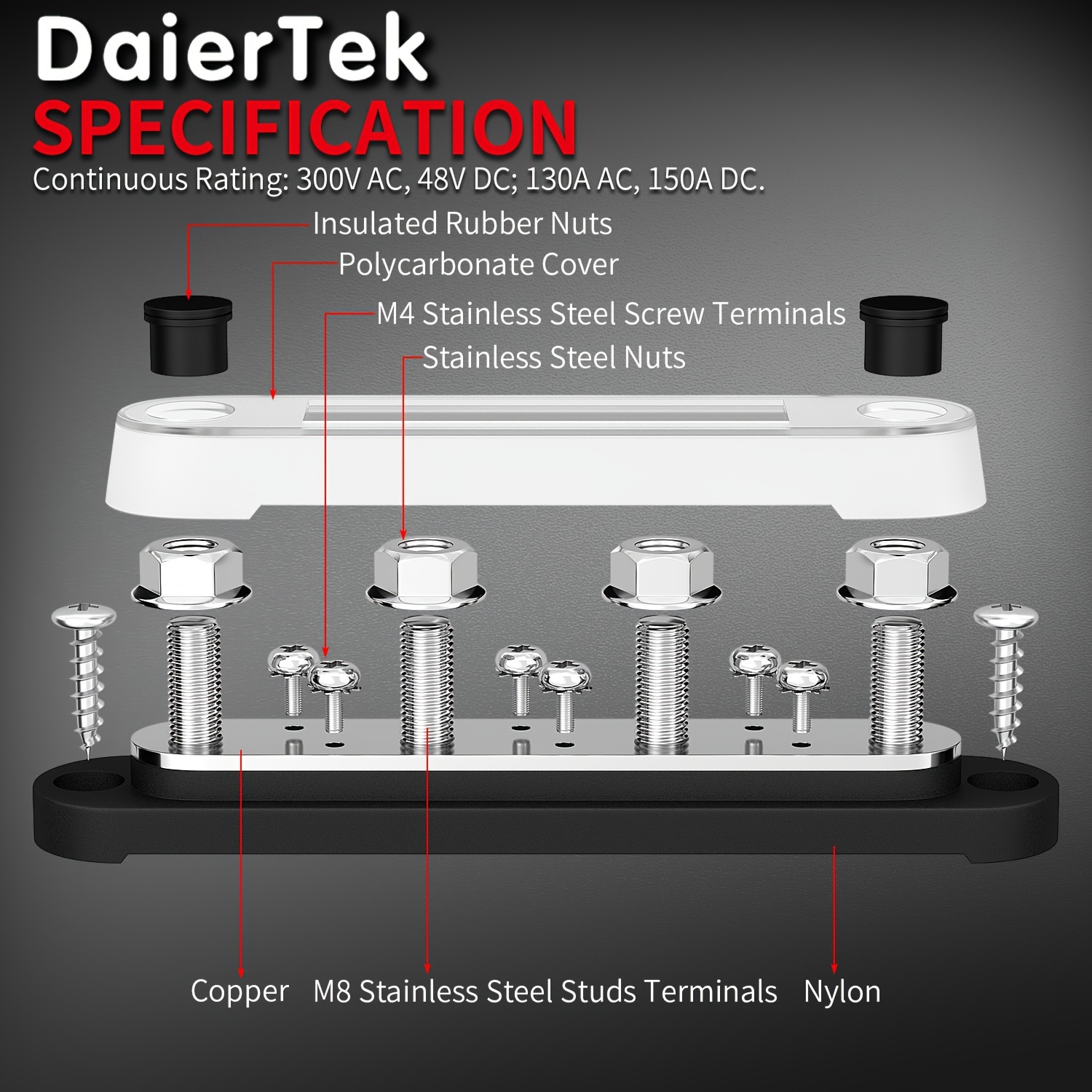

Description of the product: This terminal has four positive and negative studs, each battery terminal block has four M8 (5/16 inch) terminal studs and six M4 (#8) screw designs, all made of stainless steel. This 12V marine insulated busbar is rated to handle a maximum voltage of 300V AC, 48V DC, and a continuous current of up to 130A AC, 150A DC.
The base of this DC bus bar terminal block features a distinctive rounded corner design, giving the battery distribution block a unique and exceptional appearance that stands out from other busbars. The cover of these marine busbars is designed with a larger open area, allowing for 180° wire lug installation and accommodating various methods of end terminal installation.
This power distribution block for vehicles utilizes copper plates and stainless steel terminals as conductors, allowing it to function in harsh conditions. It is ideal for use in automotive, cars, RVs, trucks, marine vessels, boats, solar energy systems, and more. The package contains 1 Positive Bus Bar, 1 Negative Bus Bar, and 4 Mounting Screws. Specifications: Part NO BB150-T4M8S6-C, Connection Type: Red for Positive, Black for Negative, Terminal Studs: 4 x M8 (5/16")
Screws for terminals: 6 x M4 (#8)
Maximum Voltage: 300V AC, 48V DC
Maximum Continuous Amperage: 130A AC, 150A DC
Main Material: Nylon
Plate Material: Copper
Terminal Material: Stainless Steel
Cover Material: Clear Polycarbonate
Overall Size: 150mm x 28mm x 35mm (Length x Width x Height)
